Eroding and Dilating {#tutorial_erosion_dilatation}

@tableofcontents

@prev_tutorial{tutorial_gausian_median_blur_bilateral_filter} @next_tutorial{tutorial_opening_closing_hats}

| | | | -: | :- | | Original author | Ana Huamán | | Compatibility | OpenCV >= 3.0 |

Goal

In this tutorial you will learn how to:

• Apply two very common morphological operators: Erosion and Dilation. For this purpose, you will use the following OpenCV functions:
  • @ref cv::erode
  • @ref cv::dilate

@note The explanation below belongs to the book Learning OpenCV by Bradski and Kaehler.

Morphological Operations

• In short: A set of operations that process images based on shapes. Morphological operations apply a structuring element to an input image and generate an output image.
• The most basic morphological operations are: Erosion and Dilation. They have a wide array of uses, i.e. :
  • Removing noise
  • Isolation of individual elements and joining disparate elements in an image.
  • Finding of intensity bumps or holes in an image

• We will explain dilation and erosion briefly, using the following image as an example:



Dilation

• This operations consists of convolving an image \f$A\f$ with some kernel (\f$B\f$), which can have any shape or size, usually a square or circle.
• The kernel \f$B\f$ has a defined anchor point, usually being the center of the kernel.
• As the kernel \f$B\f$ is scanned over the image, we compute the maximal pixel value overlapped by \f$B\f$ and replace the image pixel in the anchor point position with that maximal value. As you can deduce, this maximizing operation causes bright regions within an image to "grow" (therefore the name dilation).

• The dilatation operation is: \f$\texttt{dst} (x,y) = \max _{(x',y'): \, \texttt{element} (x',y') \ne0 } \texttt{src} (x+x',y+y')\f$

• Take the above image as an example. Applying dilation we can get:



• The bright area of the letter dilates around the black regions of the background.

Erosion

• This operation is the sister of dilation. It computes a local minimum over the area of given kernel.
• As the kernel \f$B\f$ is scanned over the image, we compute the minimal pixel value overlapped by \f$B\f$ and replace the image pixel under the anchor point with that minimal value.
• The erosion operation is: \f$\texttt{dst} (x,y) = \min _{(x',y'): \, \texttt{element} (x',y') \ne0 } \texttt{src} (x+x',y+y')\f$

• Analagously to the example for dilation, we can apply the erosion operator to the original image (shown above). You can see in the result below that the bright areas of the image get thinner, whereas the dark zones gets bigger.



Code

@add_toggle_cpp This tutorial's code is shown below. You can also download it here @include samples/cpp/tutorial_code/ImgProc/Morphology_1.cpp @end_toggle

@add_toggle_java This tutorial's code is shown below. You can also download it here @include samples/java/tutorial_code/ImgProc/erosion_dilatation/MorphologyDemo1.java @end_toggle

@add_toggle_python This tutorial's code is shown below. You can also download it here @include samples/python/tutorial_code/imgProc/erosion_dilatation/morphology_1.py @end_toggle

Explanation

@add_toggle_cpp Most of the material shown here is trivial (if you have any doubt, please refer to the tutorials in previous sections). Let's check the general structure of the C++ program:

@snippet cpp/tutorial_code/ImgProc/Morphology_1.cpp main

-# Load an image (can be BGR or grayscale) -# Create two windows (one for dilation output, the other for erosion) -# Create a set of two Trackbars for each operation:

-   The first trackbar "Element" returns either **erosion_elem** or **dilation_elem**
-   The second trackbar "Kernel size" return **erosion_size** or **dilation_size** for the
    corresponding operation.

-# Call once erosion and dilation to show the initial image.

Every time we move any slider, the user's function Erosion or Dilation will be called and it will update the output image based on the current trackbar values.

Let's analyze these two functions:

The erosion function

@snippet cpp/tutorial_code/ImgProc/Morphology_1.cpp erosion

The function that performs the erosion operation is @ref cv::erode . As we can see, it receives three arguments:

• src: The source image
• erosion_dst: The output image

• element: This is the kernel we will use to perform the operation. If we do not specify, the default is a simple 3x3 matrix. Otherwise, we can specify its shape. For this, we need to use the function cv::getStructuringElement : @snippet cpp/tutorial_code/ImgProc/Morphology_1.cpp kernel

  We can choose any of three shapes for our kernel:

  • Rectangular box: MORPH_RECT
  • Cross: MORPH_CROSS
  • Ellipse: MORPH_ELLIPSE

  Then, we just have to specify the size of our kernel and the anchor point. If not specified, it is assumed to be in the center.

That is all. We are ready to perform the erosion of our image.

The dilation function

The code is below. As you can see, it is completely similar to the snippet of code for erosion. Here we also have the option of defining our kernel, its anchor point and the size of the operator to be used. @snippet cpp/tutorial_code/ImgProc/Morphology_1.cpp dilation @end_toggle

@add_toggle_java Most of the material shown here is trivial (if you have any doubt, please refer to the tutorials in previous sections). Let's check however the general structure of the java class. There are 4 main parts in the java class:

• the class constructor which setups the window that will be filled with window components
• the addComponentsToPane method, which fills out the window
• the update method, which determines what happens when the user changes any value
• the main method, which is the entry point of the program

In this tutorial we will focus on the addComponentsToPane and update methods. However, for completion the steps followed in the constructor are:

-# Load an image (can be BGR or grayscale) -# Create a window -# Add various control components with addComponentsToPane -# show the window

The components were added by the following method:

@snippet java/tutorial_code/ImgProc/erosion_dilatation/MorphologyDemo1.java components

In short we

-# create a panel for the sliders -# create a combo box for the element types -# create a slider for the kernel size -# create a combo box for the morphology function to use (erosion or dilation)

The action and state changed listeners added call at the end the update method which updates the image based on the current slider values. So every time we move any slider, the update method is triggered.

Updating the image

To update the image we used the following implementation:

@snippet java/tutorial_code/ImgProc/erosion_dilatation/MorphologyDemo1.java update

In other words we

-# get the structuring element the user chose -# execute the erosion or dilation function based on doErosion -# reload the image with the morphology applied -# repaint the frame

Let's analyze the erode and dilate methods:

The erosion method

@snippet java/tutorial_code/ImgProc/erosion_dilatation/MorphologyDemo1.java erosion

The function that performs the erosion operation is @ref cv::erode . As we can see, it receives three arguments:

• src: The source image
• erosion_dst: The output image

• element: This is the kernel we will use to perform the operation. For specifying the shape, we need to use the function cv::getStructuringElement : @snippet java/tutorial_code/ImgProc/erosion_dilatation/MorphologyDemo1.java kernel

  We can choose any of three shapes for our kernel:

  • Rectangular box: CV_SHAPE_RECT
  • Cross: CV_SHAPE_CROSS
  • Ellipse: CV_SHAPE_ELLIPSE

  Together with the shape we specify the size of our kernel and the anchor point. If the anchor point is not specified, it is assumed to be in the center.

That is all. We are ready to perform the erosion of our image.

The dilation function

The code is below. As you can see, it is completely similar to the snippet of code for erosion. Here we also have the option of defining our kernel, its anchor point and the size of the operator to be used. @snippet java/tutorial_code/ImgProc/erosion_dilatation/MorphologyDemo1.java dilation @end_toggle

@add_toggle_python Most of the material shown here is trivial (if you have any doubt, please refer to the tutorials in previous sections). Let's check the general structure of the python script:

@snippet python/tutorial_code/imgProc/erosion_dilatation/morphology_1.py main

-# Load an image (can be BGR or grayscale) -# Create two windows (one for erosion output, the other for dilation) with a set of trackbars each

-   The first trackbar "Element" returns the value for the morphological type that will be mapped
    (1 = rectangle, 2 = cross, 3 = ellipse)
-   The second trackbar "Kernel size" returns the size of the element for the
    corresponding operation

-# Call once erosion and dilation to show the initial image

Every time we move any slider, the user's function erosion or dilation will be called and it will update the output image based on the current trackbar values.

Let's analyze these two functions:

The erosion function

@snippet python/tutorial_code/imgProc/erosion_dilatation/morphology_1.py erosion

The function that performs the erosion operation is @ref cv::erode . As we can see, it receives two arguments and returns the processed image:

• src: The source image

• element: The kernel we will use to perform the operation. We can specify its shape by using the function cv::getStructuringElement : @snippet python/tutorial_code/imgProc/erosion_dilatation/morphology_1.py kernel

  We can choose any of three shapes for our kernel:

  • Rectangular box: MORPH_RECT
  • Cross: MORPH_CROSS
  • Ellipse: MORPH_ELLIPSE

Then, we just have to specify the size of our kernel and the anchor point. If the anchor point not specified, it is assumed to be in the center.

That is all. We are ready to perform the erosion of our image.

The dilation function

The code is below. As you can see, it is completely similar to the snippet of code for erosion. Here we also have the option of defining our kernel, its anchor point and the size of the operator to be used.

@snippet python/tutorial_code/imgProc/erosion_dilatation/morphology_1.py dilation @end_toggle

@note Additionally, there are further parameters that allow you to perform multiple erosions/dilations (iterations) at once and also set the border type and value. However, We haven't used those in this simple tutorial. You can check out the reference for more details.

Results

Compile the code above and execute it (or run the script if using python) with an image as argument. If you do not provide an image as argument the default sample image (LinuxLogo.jpg) will be used.

For instance, using this image:

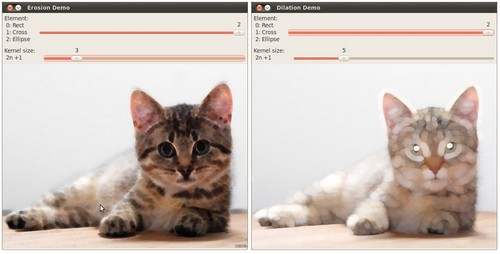

We get the results below. Varying the indices in the Trackbars give different output images, naturally. Try them out! You can even try to add a third Trackbar to control the number of iterations.

(depending on the programming language the output might vary a little or be only 1 window)
